Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Brand: Risingstar
Produktivitas: 189k
Panggonan Asal: Shenzhen
Certificate: ISO9001/CE/ROSH/UL/FCC
15.4 "Panel LCD TFT sing padhang, panel LCD sing padhang ing 1000 nits, srengenge bisa diwaca. Modul lcd sing padhang karo panel LCD sing padhang karo chiei Innololu kanggo padhang seragam.
Saben layar lampu ruangan ruangan Risingstar kanthi warna masing-masing kanthi standar CIE warna; iki ora mung ngasilake warna sing bener, nanging warna-warna sing bener, nanging warna pencernaan mlebu, padhang sing dhuwur 500-1000 nits bisa dipilih, seragam padhang luwih saka 90%.
15.4 "Panel LCD TFT sing padhang, dilengkapi latar mburi latar, drive drive kanthi driver sing dipimpin, suhu operasi: -30 ~ 80 ~ C, lan tahan geter 10 ° (14,7m /s / model iki minangka panel suhu sudhut, urip latar urip 50k jam, lvds sinyal, 30 pin.

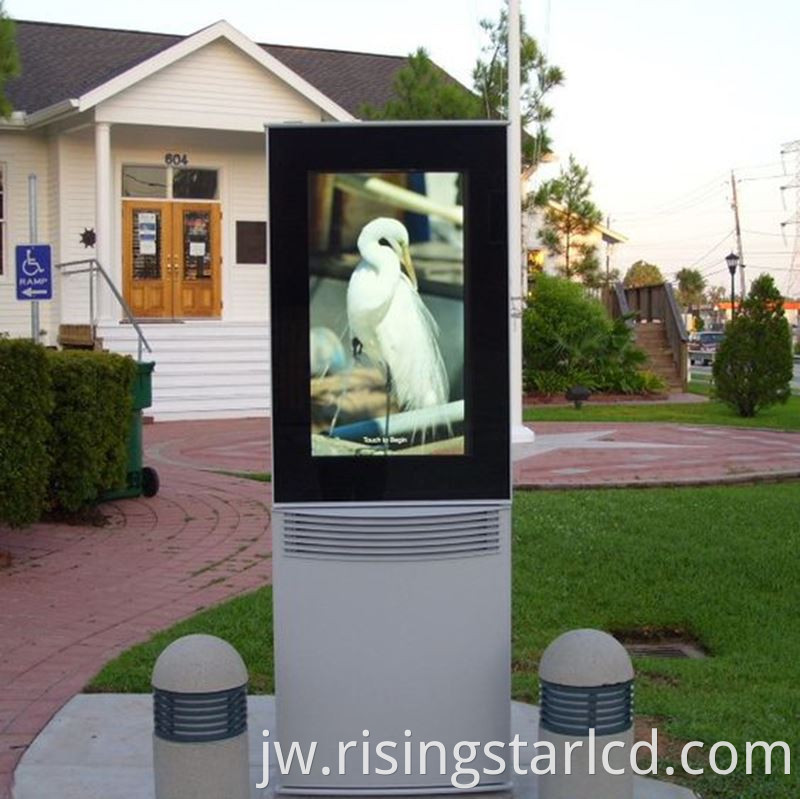

15.4 "Padhang sing dhuwur digunakake ing tampilan kontrol industri, kertu kelas elektronik, tumpukan energi anyar, lemari ekspres, panel kontrol genggem, layar lsp.
| Product size | 15.4 inch | Type | a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×800[WUXGA] 98PPI | Configuration | RGB Vertical Stripe |
| Active Area | 334.5(H)×210.3(V) mm | Outline Dim. | 352(H)×230(V) ×9.5(D) mm |
| Viewing Angle | 80/80/70/70 (Min.)(CR≥10) | Treatment | Glare , Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 5/11(Typ.)(Tr/Td) |
| Support Color | 16.2M 56% NTSC | Light Source | WLED , 50K hours , With LED Driver |
| Weight | 880g | Designed For | Outdoor High Brightness Automotive Display |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | LVDS(1 ch,6/8-bit) , 30pins | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Tags Panas: 15,4 inci TFT LCD panel TFT, China, Pabrik, Dipatoni, Skrip LCD TV, layar LCD DIGIGHT, Tampilan Windows Digital, LCD Layar
15.4INCH 1000 NIT LCD TFT TFT
15inch layar lcd 1000nits 1000nits
