Min. Pesenan:1 Piece/Pieces
Brand: Risingstar
Produktivitas: 135K
Panggonan Asal: Shenzhen
Certificate: CE/ROSH/UL/ISO9001

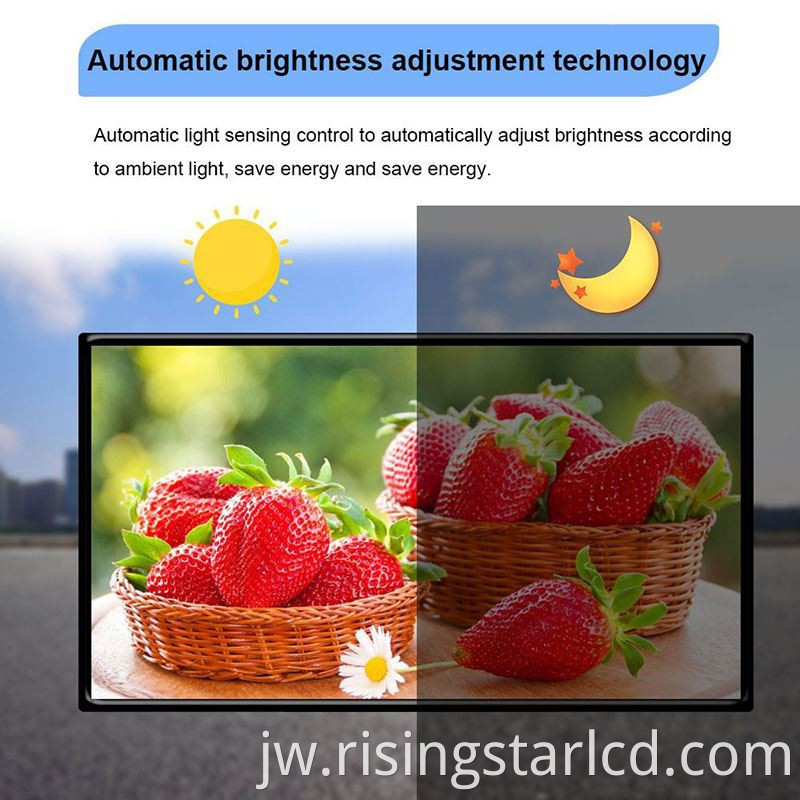

15.4inch 1000 NIT LCD TFT TFT saka Shenzhen Risingstar .Ing 15.4 "Modul LCD kanthi Teknologi Latar LCD, Padhang Cahya, Padhang bisa diatur miturut cahya sing cedhak Sumber Ganti.
Layar lcd sing padhang butuh kerja nganti pirang-pirang jam, lan macem-macem lingkungan lan owah-owahan suhu gedhe. Mula, kontras, kekiatan lan stabilitas sing dhuwur wis dadi fitur layar LCD sing penting banget. Panel TFT TFT TFT 15.4 inci cocog karo kabutuhan iki.
Padhang padhang panel LCD mung bisa tekan 350nits, nanging layar 15.4inch 1000 lccd layar TFT , Ruangan maca kolom koran, kolom Publicity area sing apik, lsp.
| Product size | 15.4" | Type | a-Si TFT-LCD |
| Pixel Format | 1920(RGB)×1200[WUXGA] 147PPI | Configuration | RGB Vertical Stripe |
| Active Area | 330.62(H)×206.64(V) mm | Outline Dim. | 341.2(H)×219.14(V) ×13(D) mm |
| Viewing Angle | 80/80/70/70 (Min.)(CR≥10) | Treatment | Hard coating (3H) |
| Luminance | 800-1000 cd/m² (Typ.) | Contrast Ratio | 1450:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 10/8(Typ.)(Tr/Td) |
| Support Color | 16.2M 56% NTSC | Light Source | WLED ,20K hours , With LED Driver |
| Weight | 830/850g(Typ./Max) | Designed For | Outdoor High Brightness Automotive Display |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | LVDS(1 ch,2 port) , 6pins | ||
| Power Supply | 12.0V (Typ.) | ||
| Environment | Operating Temperature: -40 ~ 95 °C ; Storage Temperature: -30 ~ 85 °C |
