Min. Pesenan:1 Piece/Pieces
Brand: Risinglcd
Produktivitas: 12500
Panggonan Asal: Shenzhen
Certificate: CE/ROSH/ISO9001/UL

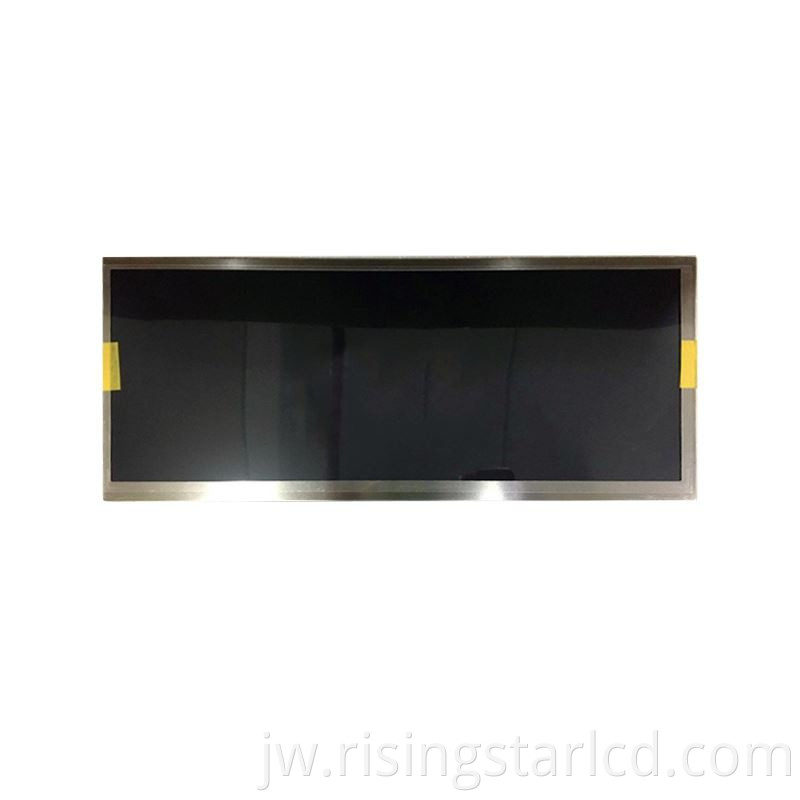

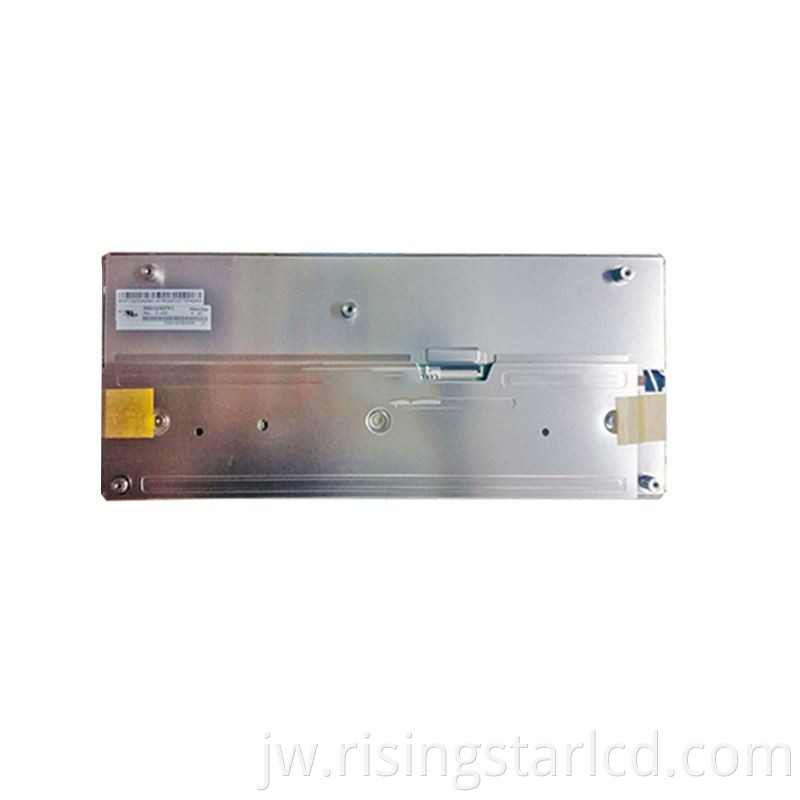

Shenzhen RisingStar 1000 panel LCD 12.3inch LCD.Bith lvds antarmuka sing padhang 1000 nits, srengenge bisa diwaca. Panel lcd gaya iki minangka panel lcd industri, suhu suhu -30 -30 ~ 85 ℃ .Tekhapan geter saka panel LCD iki yaiku 2.9G (28,4m / S2), sing biasane digunakake kanggo tampilan mobil / bis.
| Size | 12.3inch |
| Panel item | RS123NET-N10 |
| Panel type | a-Si TFT-LCD |
| Display mode | Normally black |
| Pixels | 1920*720, 167PPI |
| brightness | 1000cd/m2 |
| Constrast Ratio | 1000：1 |
| View angle | 85/85/85/85 |
| Dispaly area | 292.032*109.512mm(H*V) |
| Outline Size | 308.1*130.7.6mm(H*V*D) |
| Signal Type | LED |
| Working freqyency | 60Hz |
| Working temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| Display ratio | 8:3 |
| Display color | 16.7m |
| Supply Voltage | 3.3V |
| Single interface | LVDS (2ch,8-bit),50 pin |
| Weight | 0.52kgs |
Tags Panas: 1000 panel LCD 1,3 inci, China, pabrik, murah, rega, layar Digital LCD, layar Digital LCD, panel ruangan lcd, 86 inci lcd panel, layar lcd 2500nits, layar TV ing njaba , Panel LCD, modul LCD, tampilan padhang sing dhuwur.
Layar LCD Ultra tipis kanggo tv ing njaba
LCD njaba layar LCD
