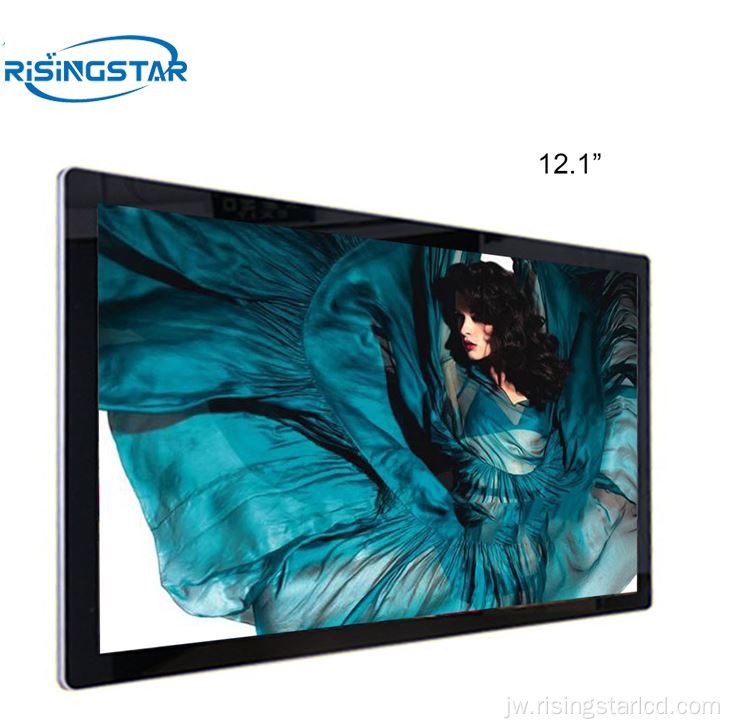

Model No.: G121EAN01.3
2.1 Modul lcd auo g121ean01.3 TFT.
Coklat srengenge sing bisa diwarisake lan jelas 70% warna jangkoan gamut warna lan mulihake warna sing padhang e HTEMRE Cuaca lan suhu.
Model liyane kanthi ukuran sing padha: g121ean01.2
| brand | AUO | Model name | G121EAN01.3 |
| size | 12.1" | Screen type | LCD module,a-Si TFT-LCD |
| resolution | 1280(RGB)×800 (WXGA) 124PPI | Pixel configuration | RGB vertical bar |
| Display size | 261.12 × 163.2 (H×V) mm | Appearance of size | 283 × 185.1 × 9.9 (H×V×D) mm |
| Visual size | 264.22 × 168.12 (H×V) mm | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 1500 cd/m² (Typ.) | contrast | 1000 : 1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | LVDS (1 ch, 6/8-bit) ,terminal,20 pins |
|
|
| Maximum rated | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 85 °C |
|
|
